Hose Identification Labels

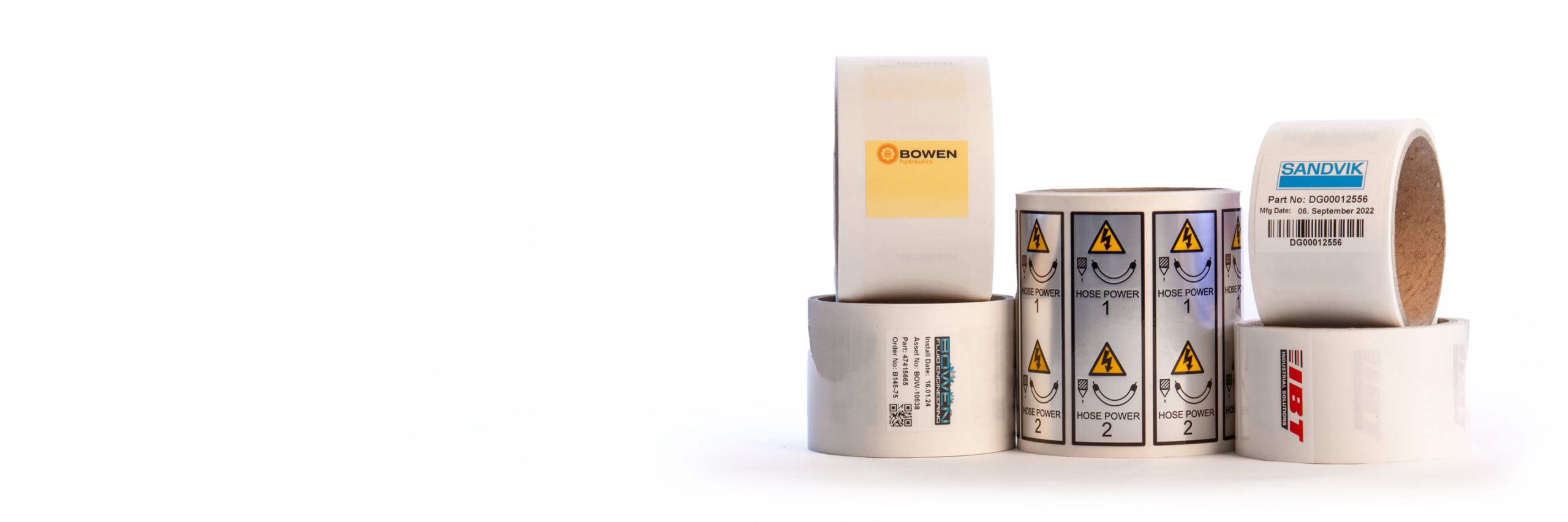

 CILS self-laminating durable labels makes hose identification simple in all industrial environments and weather conditions protecting crucial data such as pressure ratings, temperature ranges, barcodes, date, hose life and manufacturer information etc.

  • Self-laminating hose labels feature a clear, wrap-around protective tail to seal and safeguard all printed data
  • Hose labels can also be supplied in a flag format to provide more label information for smaller diameter hoses.
  • Labels are fully computer printable or can be supplied pre-printed with your data as specified
  • 1-2 day delivery, anywhere in the world



Applying Self-laminating and Flag labels




    • CILS-84000-CHL - Conformable Hose labels
      Vinyl with a matt finish. Durable, self-laminating, self-extinguishing label. Excellent conformability. White printable area for use with thermal transfer printers with an ARA grade ribbon. Temp range: -30°C to + 90°C
    • CILS-84000-CHL/COL
      Label same as above with a choice of different colour-coded print area.
    • CILS-91000-DHL/TK - Thick Durable hose label
      Polyester label with a gloss finish. Thick and extremely durable self-laminating label with a white printable area (other colour options are available). Laser printable with the manufacturer's original toner. Temp range: - 40°C to +150°C
    • CILS-91000-DHL/TK/COL
      Label same as above with a choice of different colour-coded print area.
    • CILS-81000-DHL/TK - Thick Durable hose label
      Polyester label with a gloss finish. Thick and extremely durable self-laminating label with a white printable area (other colour options are available). White printable area (other colour options available) for use with thermal transfer printers with an ARA grade ribbon. Temp range: - 40°C to +150°C
    • CILS-81000-DHL/TK/COL
      Label same as above with a choice of different colour-coded print area.
      CILS-91000-DHL/TN - Thin Durable hose label
      Polyester label with a gloss finish. Thin self-laminating label for smaller diameter hoses. White printable area (other colour options are available). Laser printable with the manufacturer's original toner. Temp range: - 40°C to +150°C
    • 91000-DHL/TN/COL
      Label same as above with a choice of different colour-coded print area.
    • CILS-81000-DHL/TN - Thin Durable hose label
      Polyester label with a gloss finish. Thin self-laminating label for smaller diameter hoses. White printable area (other colour options are available) for use with thermal transfer printers with an ARA grade ribbon.Temp range: - 40°C to +150°C
    • 81000-DHL/TN/COL
      Label same as above with a choice of different colour-coded print area.
    • 8100-HTHM/FR - Flame retardant hose labels
      Polyester self-laminating label with a matt finish. Flame retardant flag label for use with thermal transfer printers with an ARA, DRD or ZRC grade ribbon. Temp range: - 40°C to +150°C
    • 8900-HTHM/FR - Flame retardant hose labels
      Polyimide label with a gloss finish. Flame retardant flag label for use with thermal transfer printers with an ARA, DRD or ZRC grade ribbon.Flame retardant high temperature label material 300°C (90sec), 260°C (5mins), 125°C (100hrs). For harsh environments.  Temp range: As detailed
    • 8100-HM/ESD - Anti-static Hose labels
      Polyester label with a gloss finish. Anti-static flag label for use with thermal transfer printer with an ARA, DRD or ZRC grade ribbon. Durable static dissipative polyester deemed to be 'static safe' to EIA 625, EIA 541 in accordance with EOS/ESD S11.11. Temp range: -40°C to + 205°C



  • CILS can manufacture labels to any size or tail length. Long tail length labels can be made so they can be cut by you to suit a variety of hose diameters.

    Popular hose labels sizes include...

    Typical self-laminating label sizes


    5 -10 mm diameter hose
    Print area height 10 mm
    Print area width 25 mm
    Tail length 45 mm

    10-20 mm diameter hose
    Print area height 22 mm
    Print area width 25 mm
    Tail length 85 mm

    20-30mm diameter hose
    Print area height 40 mm
    Print area width 40 mm
    Tail length 135 mm

    30-40mm diameter hose
    Print area height 55 mm
    Print area width 55 mm
    Tail length 180 mm

    40-50mm diameter hose
    Print area height 55 mm
    Print area width 55 mm
    Tail length 200 mm

    50-60mm diameter hose
    Print area height 55 mm
    Print area width 55 mm
    Tail length 245 mm

    60-70mm diameter hose
    Print area height 55 mm
    Print area width 55 mm
    Tail length 280mm


    Typical flag label size
    s

    5-10mm diameter hose
    Flag height 20mm
    Flag width 20mm

    10-15mm diameter hose
    Flag height 20mm
    Flag width 30mm

    15-20mm diameter hose
    Flag height 20mm
    Flag width 30mm

    20-25mm diameter hose
    Flag height 20mm
    Flag width 30mm

    • Adhere to industry standards e.g. SAE (Society of Automotive Engineers), EN (European Norm), DIN (Deutsche Institute fur Normung), MDG 41 (Guideline for Fluid Power Safety at Mines) and ISO (International Standards Organization).
    • Hose labels can be colour-coded and/or barcoded for immediate hose recognition.
    • Labels are printable in seconds straight from your PC and standard laser or thermal transfer printer.
    • Good conformability and adhesion to all hose types – suitable for round and flat
    • Computer Imprintable hose labels can replace costly metal tags.
    • Correct hose labelling helps eliminate costly repairs, reduces production downtime due to hose failures and helps ensure a safe work environment.
    • Agricultural Spraying Hose
    • Air hose
    • Air pro suction hose
    • Anti-static hose
    • Atex compliant hose
    • Automotive tubing and hose
    • Breathing air hose and assemblies
    • Braided hoses
    • Chemical hoses
    • Food and beverage non-toxic hoses
    • Gas hoses
    • Pharmaceutical grade hoses
    • Fuel hoses
    • Gas hoses
    • High temperature industrial hose
    • Industrial water hoses
    • Hydraulic hoses
    • Lay flat hoses
    • Marine hoses
    • Multipurpose hoses
    • Neoprene and silicone hoses
    • Oil hoses
    • Over braided hoses
    • Safety and compressed air hoses
    • Sanitation hoses
    • Steam hoses
    • Tubing
    • Water hoses
    • Agriculture
    • Rail industry
    • Automotive industry
    • Mining industry
    • Food & Beverage industry
    • Chemical
    • Petrochemical
    • Oil and Gas
    • Material Handling
    • Pharmaceutical
    • Marine
